Precision at a Cellular Level.
Precision Pulse FX delivers electromagnetic focused shockwave technology engineered for predictable, reproducible energy delivery — reaching deep into targeted tissues where it’s needed most.
Focused energy delivery to deeper target tissues.
High-intensity focal zone for clinical precision.
Controlled pulse delivery up to 10 pulses/second.
Focused Shockwave:
— The Technology
How it Works
Electromagnetic Coil Discharge
A rapid electrical discharge through the electromagnetic coil generates an intense magnetic field inside the applicator head.
Acoustic Wave Generation
The magnetic field drives a metal membrane, causing it to rapidly repel and create strong acoustic pressure waves.
Acoustic Lens Focusing
Waves are focused through a lens to form a distinct focal energy density point.
Targeted Tissue Activation
Mechanical force at the focal zone stimulates collagen synthesis, angiogenesis, and localized tissue remodeling.
Pain Signal Modulation
Focused acoustic energy helps calm pain signaling by influencing local tissue and nerve sensitivity.
Controlled Depth Adjustment
Real-time water level control shifts focal depth during treatment — no stops, no pad swaps, no interruptions.
The Most Powerful
— Focal Zone & Mechanism

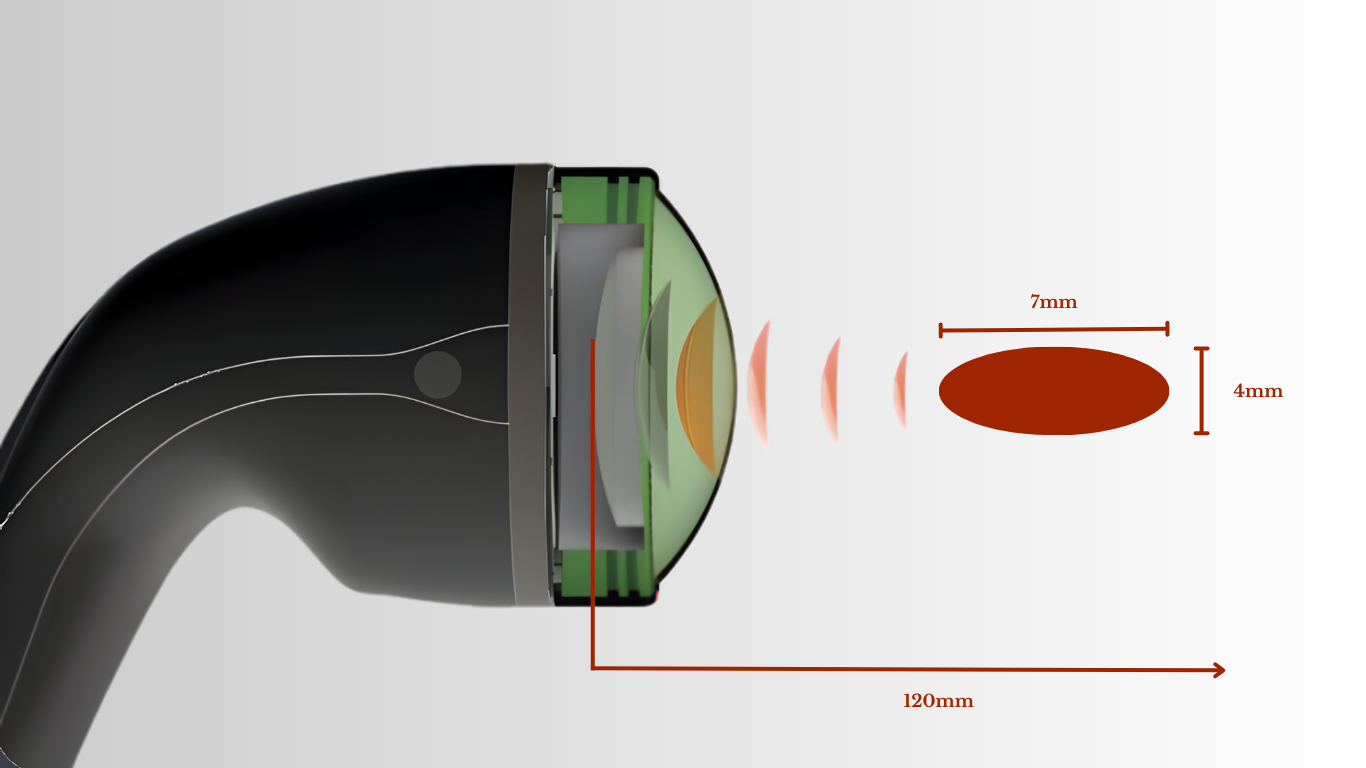

Focal Zone Technology.
Electromagnetic shockwave generates the most powerful focal zone of any focused shockwave technology. Delivering powerful depth penetration while minimizing surface discomfort.
Pinpoint Focal Accuracy
A consistent focal point delivers precise energy with minimal collateral impact, improving accuracy and reliability.
Stable & Reproducible Waves
The most consistent shockwave technology, eliminates variability between pulses. Every shockwave is identical, delivering the same therapeutic delivery every treatment, every time.
Superficial Tissue Protection
Energy converges below the skin surface. This minimizes surface discomfort for the patient, allowing higher therapeutic doses.
Cellular Regeneration
Mechanical force at the focal zone stimulates collagen synthesis, angiogenesis, and tissue remodeling, driving true structural healing.
Real-Time
— Precision Depth Control
Depth Control
Our unique silicone water bladder system lets you seamlessly shift focal depth during treatment from superficial to deep tissue targets, without stopping & swapping gel pads.
This means more efficient sessions and a dramatically better experience for both practitioner and patient.
Superficial Range — High Water Level
Ideal for trigger points, superficial tendon insertions, and surface-level structures.
Mid-Depth Range — Medium Water Level
Targets muscle bellies, tendon, and joint capsules. The clinical workhorse range for most anatomical regions.
Deep Range — Low Water Level
Reaches deep hip, spinal, and pelvic structures. Allows access to depths inaccessible to radial systems.
Seamless In-Session Adjustment
Most other shockwave systems don't allow continuous depth tuning without interruption. Adjust your focal target as feedback guides you, mid-pulse, mid-session.

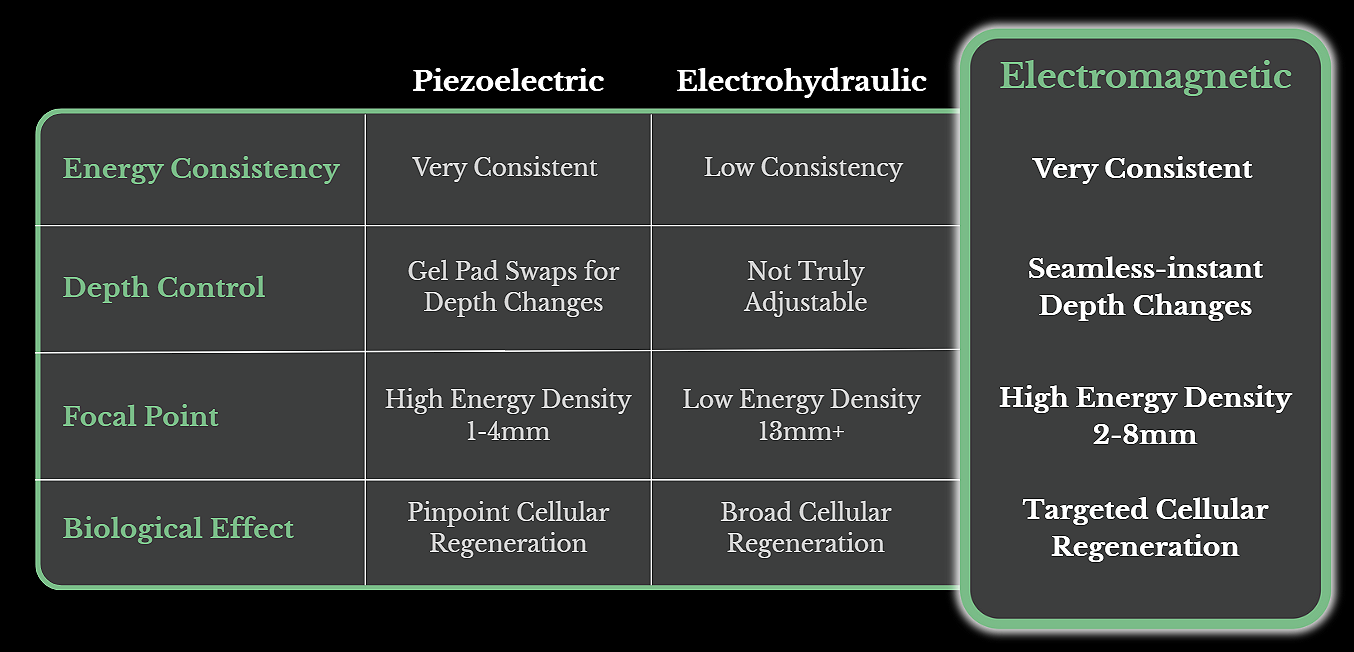

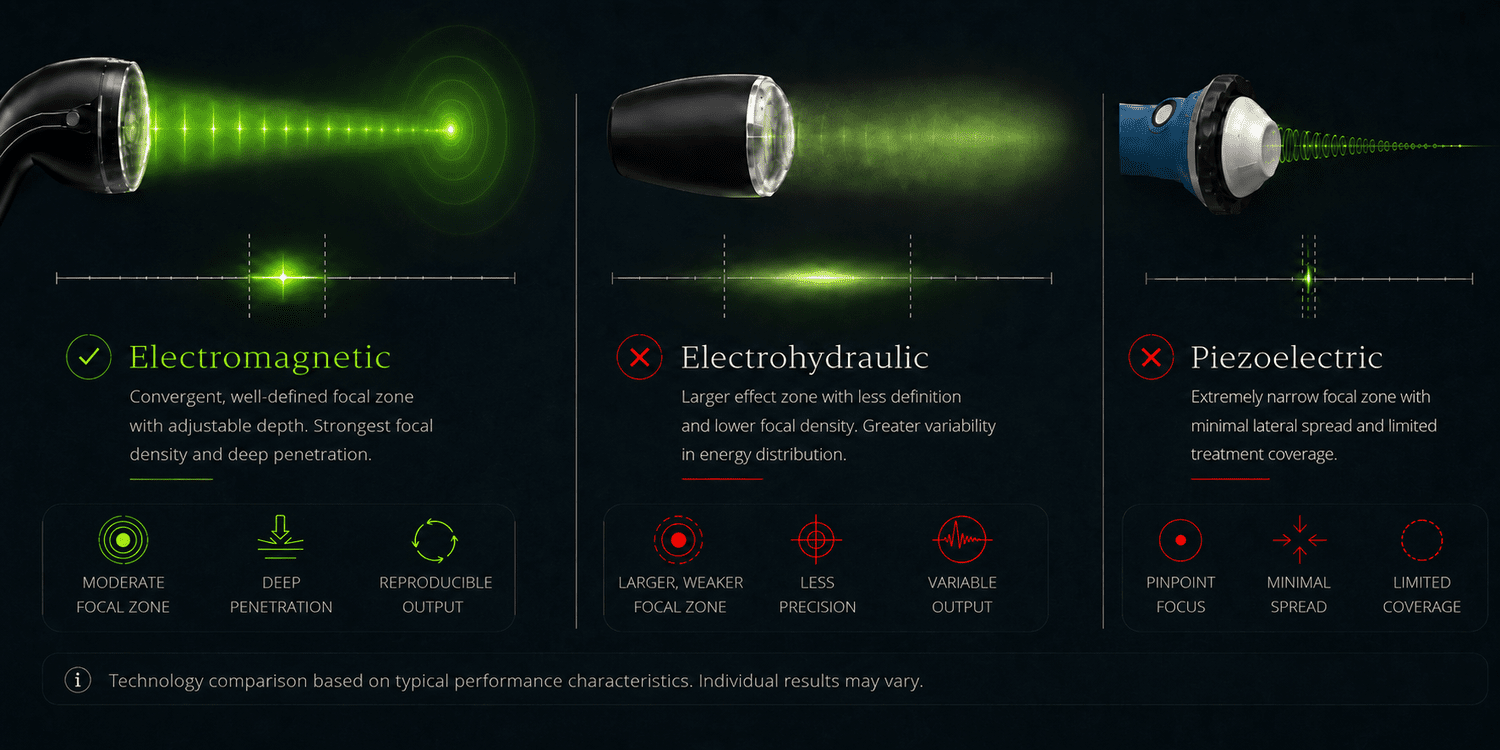

The Clear Choice in
— Compare the Technology
Shockwave Technology
|
Electromagnetic
Precision Pulse FX
|
Electrohydraulic | Piezoelectric | |
|---|---|---|---|
| Energy Delivery | Convergent, high-density energy | Generated via spark discharge | Highly focused, low dispersion output |
| Focal Zone Quality | Defined, moderate-sized focal region | Not well-defined focal convergence | Extremely narrow focal point |
| Consistency | Reproducible output every pulse | Pulse-to-pulse variability | Consistent pulse generation |
| Depth Control | Adjustable focal positioning (no hardware changes) | Limited precision without adjustments | Fixed focal geometry |
| Durability & Wear | No output loss with part wear | Spark plug degradation reduces output over time and shortens component lifespan | No output loss with part wear |
| Maintenance | Minimal consumables, stable performance | Requires saline system and ongoing upkeep | Low maintenance requirements |
| Clinical Control | Precise, repeatable dosing across treatments | Reduced dosing precision due to variability | Requires high precision targeting and technique |
| Summary | Balanced, controlled, and clinically scalable | Variable output with higher maintenance and shorter part lifespan | Highly precise but limited in broader tissue engagement |
Precision Pulse FX
Convergent, high-density energy
Defined, moderate-sized focal region
Reproducible output every pulse
Adjustable focal positioning without hardware changes
No output loss with part wear
Minimal consumables, stable performance
Precise, repeatable dosing across treatments
Electrohydraulic
Generated via spark discharge
Not well-defined focal convergence
Pulse-to-pulse variability
Limited precision without adjustments
Spark plug degradation reduces output over time and shortens component lifespan
Requires saline system and ongoing upkeep
Reduced dosing precision due to variability
Piezoelectric
Highly focused, low dispersion output
Extremely narrow focal point
Consistent pulse generation
Fixed focal geometry
No output loss with part wear
Low maintenance requirements
Requires high precision targeting and technique

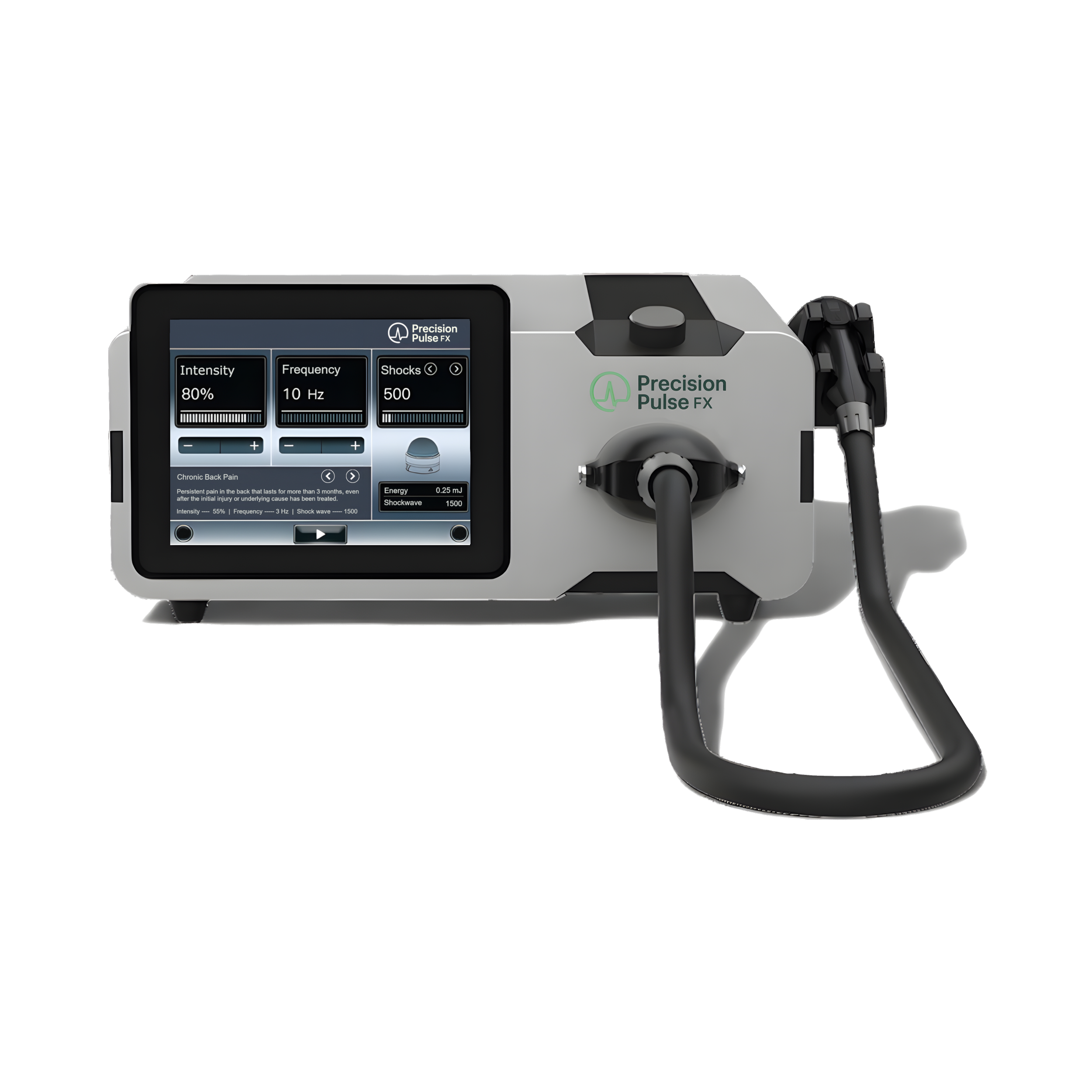

Engineered
— Device Features
for Clinicians.
Every feature of the Precision Pulse FX was designed with the practitioner in mind, reducing setup friction, maximizing efficiency, and keeping your focus on the patient.
12.1” Touchscreen Interface
Large, intuitive interface with preset clinical protocols for rapid setup. Select a condition and start treating — no manual parameter hunting required.
Handle-Mounted Intensity Controls
Built-in intensity buttons on the handpiece allow real-time adjustments during treatment without releasing the applicator or breaking contact with the patient.
Auto Water Circulation
Automated water circulation through the silicone bladder maintains consistent acoustic coupling and temperature — eliminating manual gel application.
Minimal Maintenance
Electromagnetic technology lasts significantly longer than competing systems. Precision Pulse offers the lowest consumable costs in the industry.
Single Handle Design
One ergonomic applicator handles the full 0–125mm depth range. No attachment changes, no toolbox of attachments, streamlined for busy clinical environments.
100+ Clinical Protocols
Preset evidence-based protocols for over 100 musculoskeletal and soft-tissue indications. Integrated with ACRT Shockwave Mastery Certification training.
Clinical Response
-
Electromagnetic focused shockwaves deliver a mechanical force to the body, designed to support natural physiological processes.
-
Electromagnetic focused shockwaves generate the most stable, reproducible impulses with the strongest focal zone.
-
Patient feedback provides guidance to focus treatment where it is needed most.
-
Many users report enhanced comfort and satisfaction after just one session.
-
Flexible modality with quick treatments.
-
Receive on-site training, through the ACRT Shockwave Mastery Certification.
-
Non-invasive, drug-free energy delivery system designed to support comfort and practitioner versatility — without drugs, needles, or surgery.
-
Designed for a wide range of applications across musculoskeletal, soft tissue, and wellness practices.
On-site Shockwave Training & Mastery Certification
On-going Clinical Support from our Shockwave Therapy Experts
— Get Started
Ready to Elevate your Practice?
Schedule a live demo of the Precision Pulse RX and see how dual-modality therapy transforms patient outcomes and clinical throughput.
