Technical & Clinical Deep Dive
Elevate your understanding of the Precision Pulse FX Electromagnetic Focused Shockwave System, engineered for professional wellness and therapy practices. Drawing from advanced electromagnetic principles, this device delivers strong, precise, non-invasive acoustic energy with consistent output and adjustable focus. Below, explore its mechanics, specifications, clinical versatility, and ROI realities.
How Precision Pulse FX Works: Electromagnetic Precision at Its Core

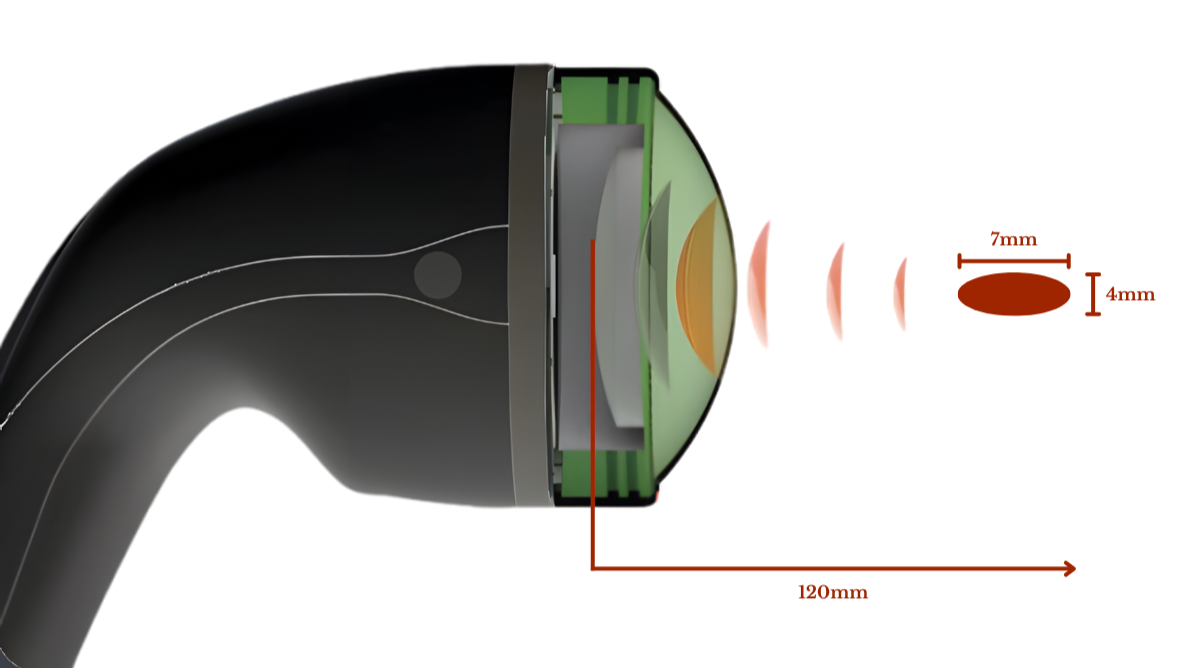

At the heart of Precision Pulse FX is electromagnetic induction—a sophisticated physical principle that generates high-energy acoustic shockwaves, converging them at a targeted focal point for deep, controlled tissue stimulation. A high-voltage coil creates a rapid magnetic field, propelling a membrane in a water chamber to produce acoustic waves. These waves propagate through water & a parabolic reflector, forming a conical focal zone outside the handpiece.
Our focused shockwaves offer adjustable depth with constant maximum intensity—ideal for both superficial and deep application. Water-accelerated acoustics minimize skin/muscle disruption, enhancing safety and comfort, while dynamic bladder head control shifts focal depths mid-treatment (no gel pad swaps required).
Key Highlights: Engineered for Clinical Excellence
Dynamic Depth Control: Effortlessly adjust penetration from 0-125mm via touchscreen or applicator buttons—higher water levels for shallower focus (superficial zones like trigger points), lower for deeper dives. Provides a wide focal zone (moderate yet strongest in class) for versatile surface-to-deep treatments, independent of energy levels.
Superior Penetration & Safety: Reaches 125mm with minimal superficial impact—safer and more comfortable than radial or electrohydraulic alternatives. Minimal microtrauma risk, drug-free, and non-invasive for all patient profiles.

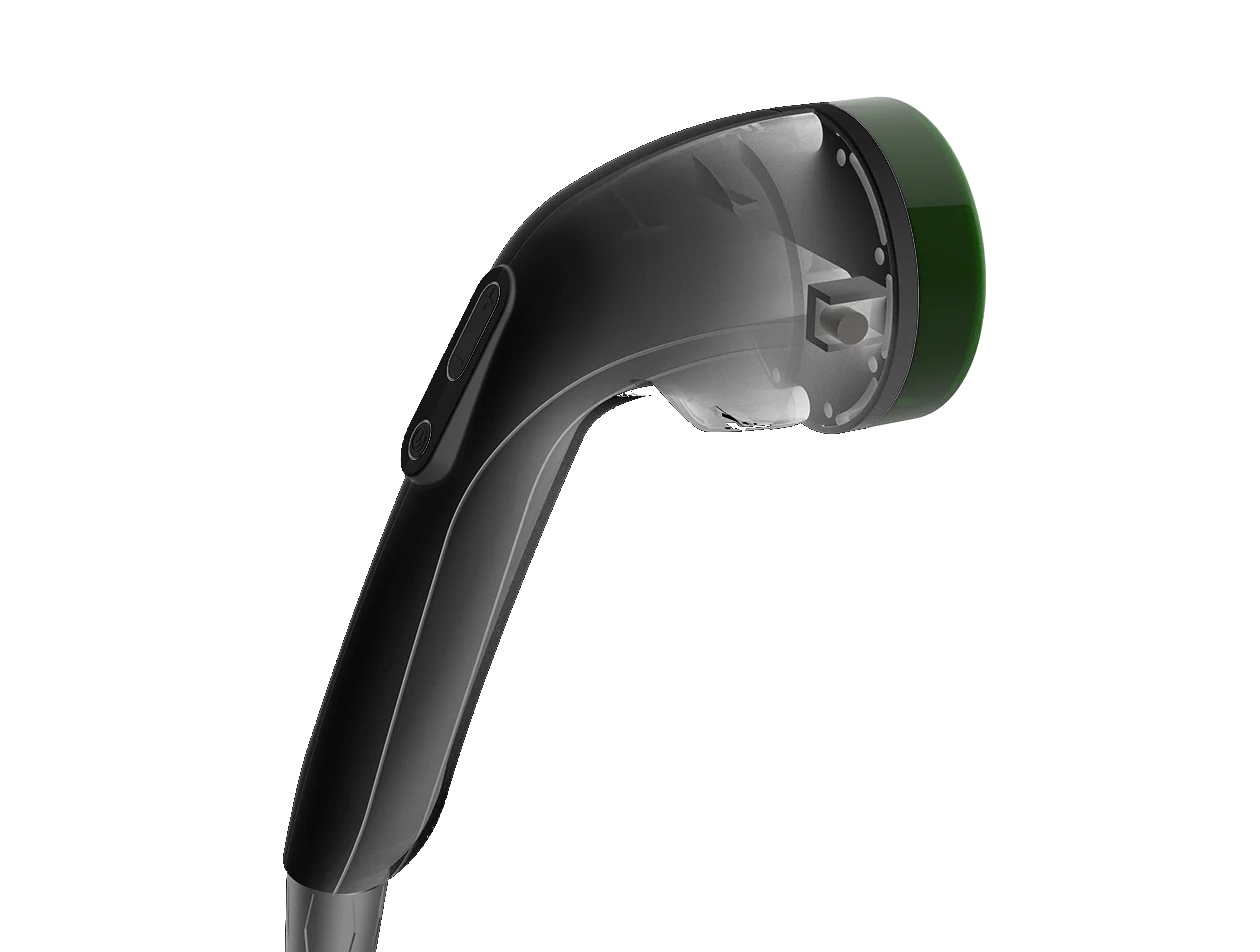

Intuitive Operation: Ergonomic, lightweight handpiece with on-device intensity/start-stop controls; pluggable applicator for quick swaps post-lifespan.
Smart Touchscreen Interface: 12.1" HD display with user-friendly software— preset protocols auto-fill by body part. "Clear" function resets treatment instantly; advanced settings track shocks for maintenance alerts.
Reliable Cooling & Durability: Water-based system ensures stable, consistent output (no plasma variability like electrohydraulic sparks)—100x lifespan over spark plugs, slashing consumables from $10-25/treatment to $1.50.
ROI Optimization: Breakeven in 3 months at 10 sessions/week; based on assumption of U.S. session fees $165. High ROI via low overhead—no routine degassing or frequent replacements.
Versatile for Real-World Impact: Precision Pulse FX can be applied widely across various protocols.
Device Specifications
Power: 400W—efficient for high-volume clinics.
Penetration Depth: 0-125mm (therapeutic up to 12cm; focal zone 0-65mm adjustable).
Frequency: 1-10Hz.
Pressure: 5-50 MPa—delivering 1000 bar peaks for deep impact.
Energy Density: 0.01-0.45 mJ/mm²— for optimal biological effect of soft tissues and bone.
Applicator Lifespan: 1-2 million shocks (replacement: $1,000 USD).
Voltage: 100-110V or 220-240V—global compatibility.
Screen: 12.1" HD touchscreen—responsive, protocol-driven.
Dimensions (L x W x H): 18.5 x 14.5 x 9 in
Weight: 105 lbs.
Cooling: Integrated water system—stable operation, no manual maintenance.
What's Included: Your Complete Launch Kit
Precision Pulse FX Machine x1.
Electromagnetic Applicator x1 (pluggable, ergonomic).
Silicon Cover x1 (protective handpiece sheath).
Water Tubes x2 + Funnel x1 (for seamless setup).
Power Cord x1 (universal compatibility).
Comprehensive User Manual x1 (digital/print: Protocols, troubleshooting, code access).
Bonus with Purchase: ACRT Shockwave Mastery Certification (hands-on course offered in your clinic), lifetime community access to shockwave experts, 24/7 support.
*No stand included (recommend local trolley for mobility).
Pre-Use Guidelines: Ensuring Optimal Performance
Setup: Connect power/water tubes; fill applicator chamber via funnel (distilled water recommended for longevity). Calibrate via touchscreen (auto-diagnostic on boot).
Maintenance: Monitor shocks in Advanced Settings—replace applicator at 1-2 million impulses or weakened output. Clean handpiece post-session; 1–2-month water system flush.
Safety: Contraindications per manual (e.g., pregnancy, pacemakers)—start at low energy for tolerance testing. Store at 50-100°F, away from direct sunlight.
ROI Tip: Charge $120-165/session (1,000 shocks average); that’s up to 2,000 treatments per applicator (which was paid off after your 6th treatment).
Frequently Asked Questions: Clarity on Every Detail
Radial vs. Focused Shockwaves? Focused (like Precision Pulse FX): Adjustable depth (0-125mm) with constant max intensity—versatile for superficial/deep tissues. Radial: Superficial focus (2-5cm), variable intensity—best for surface soft tissues.
Consumables & Costs? Only the applicator ($1,000 USD replacement, 1-2 million shocks lifespan)—$1.50/treatment vs. other focused units' $10-25 cost. No gel pad swaps; water-based for zero extras.
When to Replace Applicator? At 1-2 million shocks or output weakening—check via Settings > Advanced. Pluggable design: Swap in minutes.
Does It Include a Stand? No—compact design fits carts; source locally.
Session Pricing Guidance? U.S. avg: $120-165 for 1,000-2,000 shocks—ROI in 3 months at 10/week.
Voltage? Dual 100-240V
This deep dive equips you for informed mastery—contact for a personalized ROI assessment.
